COmmercial
Compact-GRADE
Laminate
Duct Panels

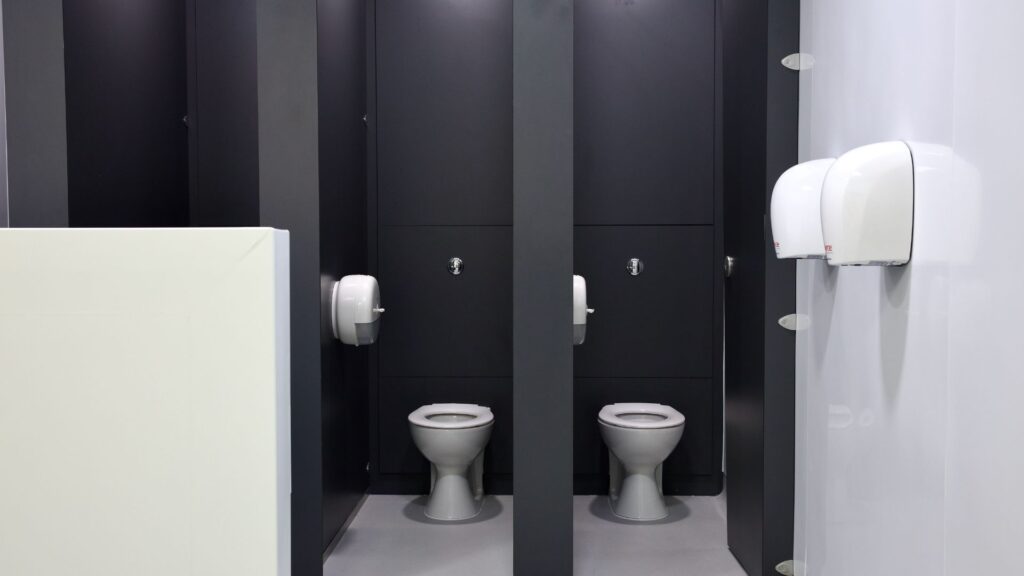

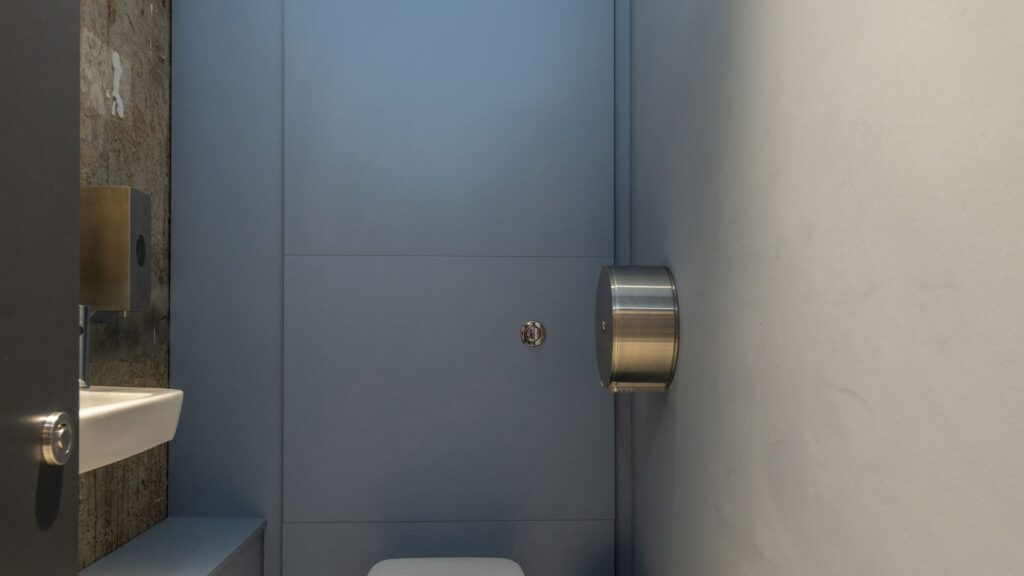

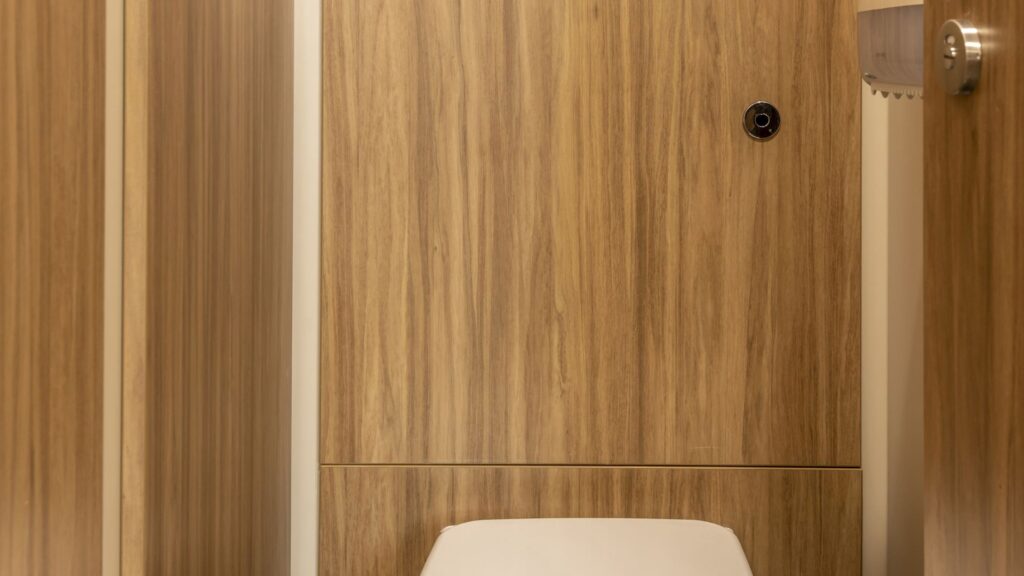

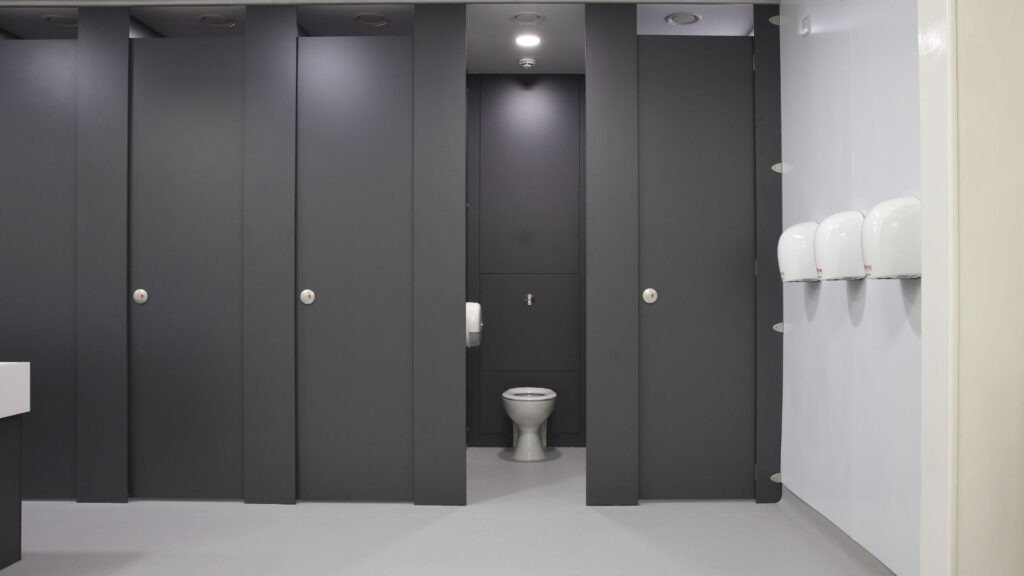

Our Compact-Grade Laminate Duct Panel systems are a smart, professional solution for concealing plumbing and building services behind toilets, urinals, and basins in modern office washrooms.
Fabricated from Compact Grade Laminate (CGL), the panels are built to perform in busy wet area environments such as commercial changing rooms and end of trip facilities, delivering long-term durability and resistance to moisture. To complete the look, these can be colour-matched to your washroom cubicles and vanities, with a wide selection of colours and finishes available to complement any commercial scheme.
configurations
Wet Area Duct Panel Cofigurator
Choose a duct panel by a style that matches your washroom scheme. Click through to see each style in action.
resources
Access Our Specifier Tools
With CAD files, Revit models and product sheets all readily available at a click, you can specify our Compact-Grade Laminate Duct Panels for your commercial project effortlessly.
Specify with confidence by speaking to our team for tailored guidance.
Product Specification
Product Specification
From panel dimensions to materials and colour options, get the inside details on our CGL Duct Panels.
CGL DUCT PANEL DIMENSIONS
Height
| No. | Item | Dimensions |
|---|
Select a panel type to view dimensions and specifications.
CGL DUCT PANEL MATERIAL

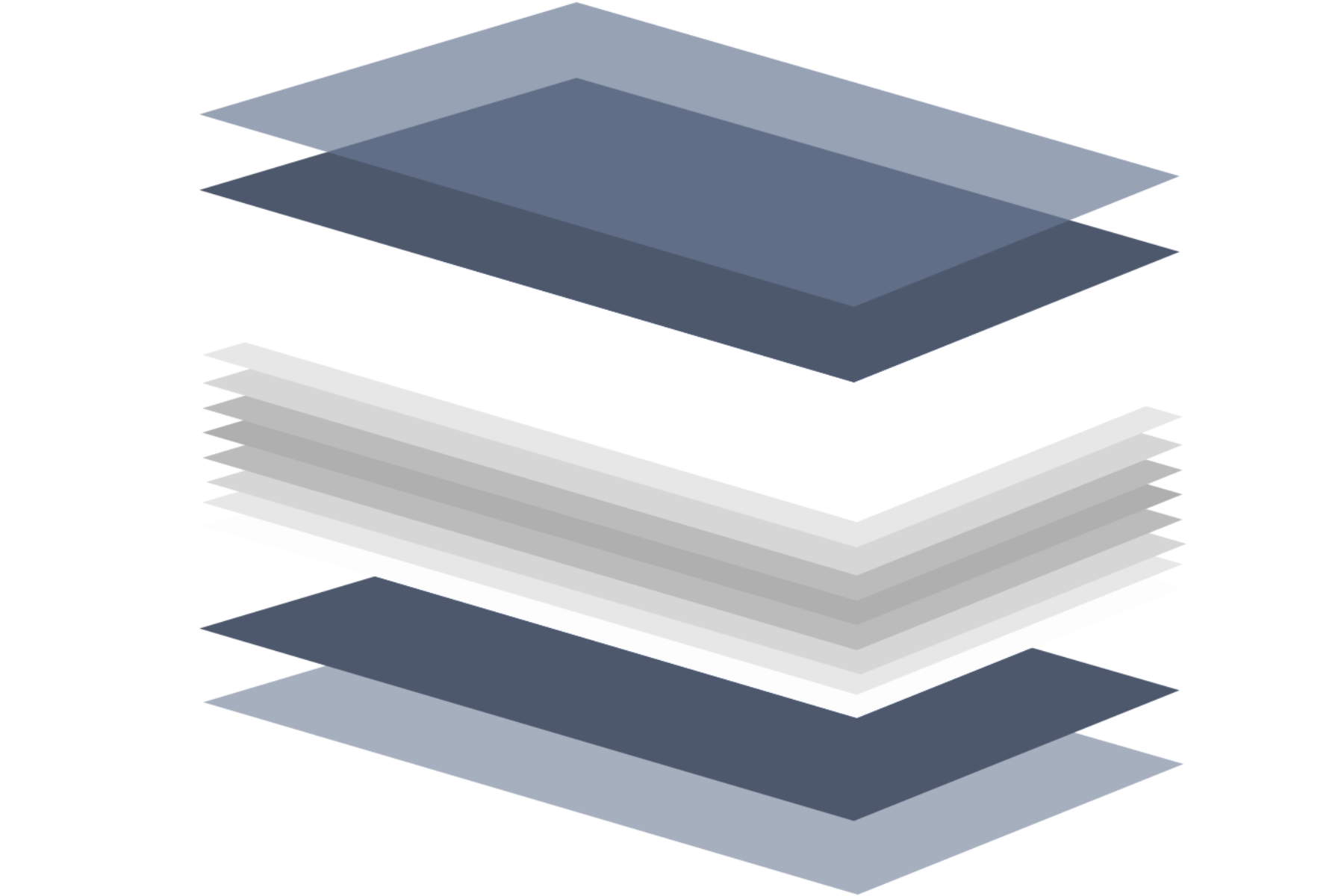

Our Wet Area Laminate Duct Panels are fabricated from 12mm Compact Grade Laminate (CGL), depending on the project’s durability and design needs. CGL offers excellent performance and water resistance in high-traffic commercial environments, with strong resistance to impact and daily use.
| No. | Material |
|---|---|
| 001 | Melamine Overlay |
| 002 | Décor Panel |
| 003 | Kraft Paper (Approx 50 Layers) |
| 004 | Décor Panel |
| 005 | Melamine Overlay |
CGL DUCT PANEL ACCESS OPTIONS
Our CGL Duct Panels come fitted with ke-ku clips as standard. For extra security and a touch of elegance, choose our lockable hinged options

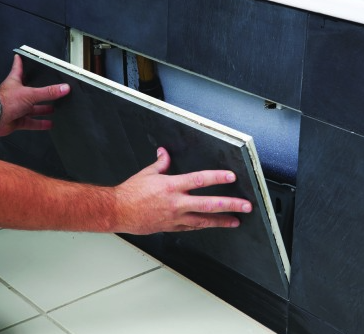

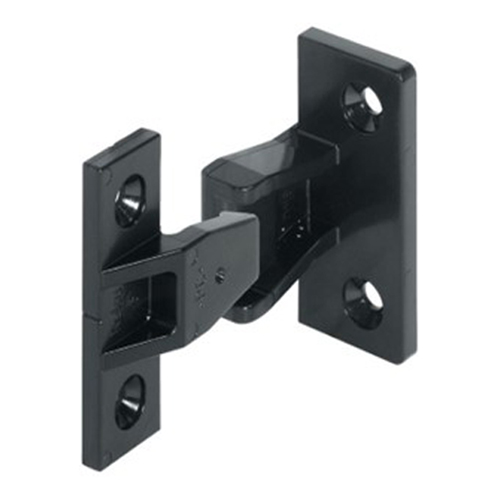

KE-KU Clips

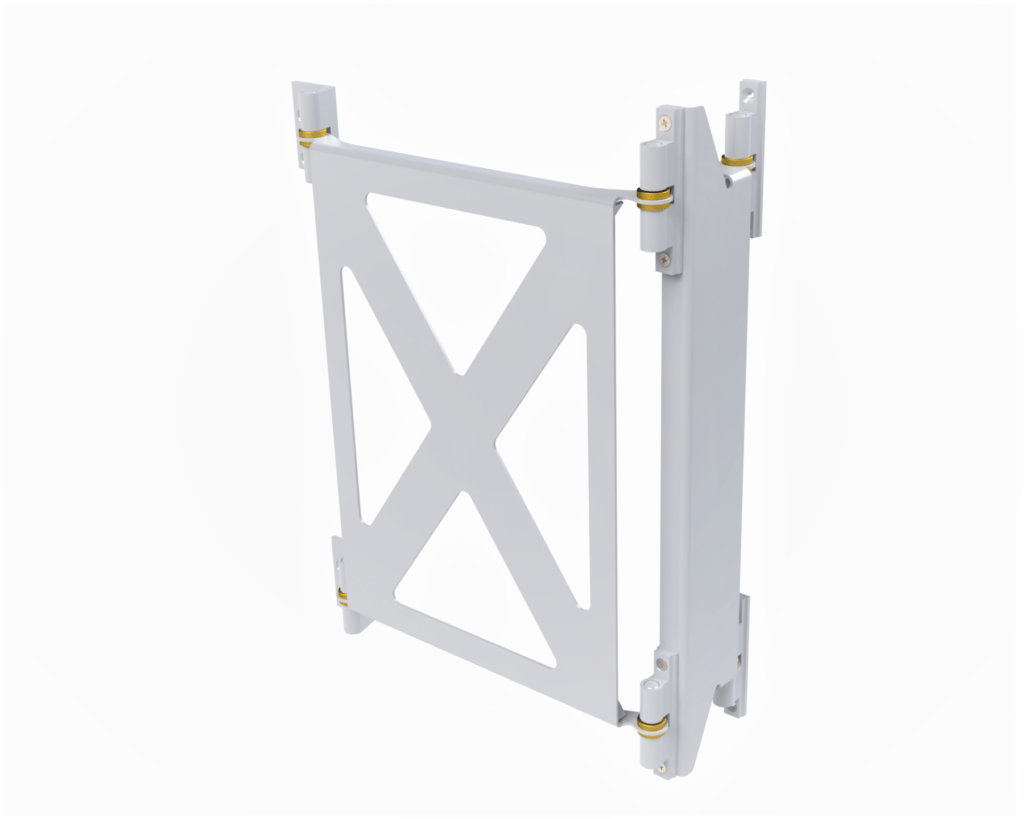

Hinged Doors
For support and helpful guidance on our vanity options, get in touch with a member of our specification team.
COLOURS
Our Compact-Grade Laminate Duct Panels are fabricated from CGL panels supplied by Fundermax, which are available in a wide range of colours and texture finishes, including solid colours, woodgrains, and stone effects to coordinate with cubicles and vanities.
Prado Alu Grey
Fundermax
Prado Agate Grey
Fundermax
Scandio
Fundermax
Brushed Aluminium
Fundermax
LOOKING FOR SOMETHING DIFFERENT?
Specify our CGL Duct Panels in toughened glass, back-painted glass, or tile backing boards to suit your design goals.
Features

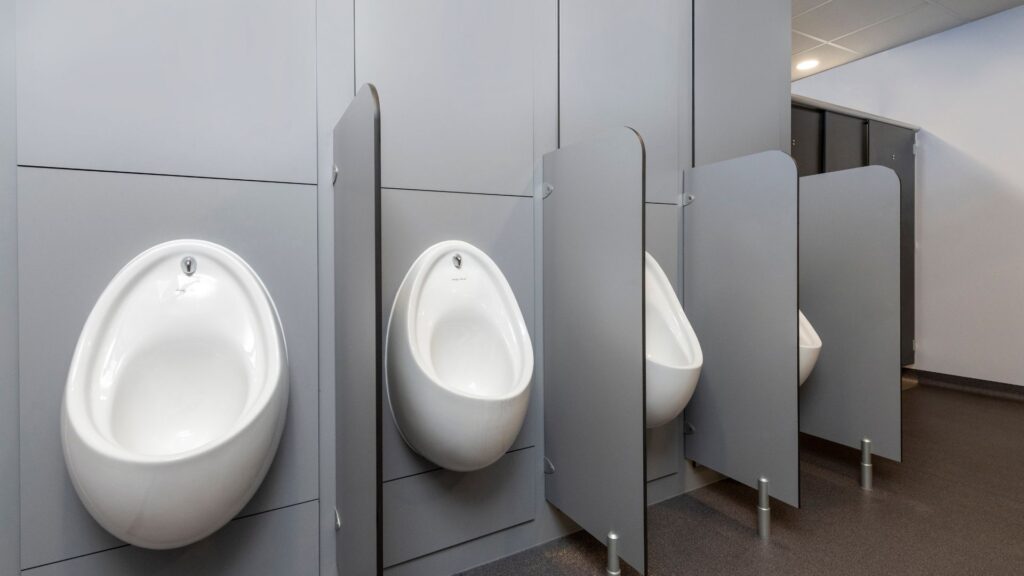

Full-height and half-height panel options
Lift-off clip fittings as standard
Available in multiple panel splits
Concealed hinges on lockable duct panels
STEP INTO OUR RESOURCES HUB
Enhance your learning with our latest specifications, BIM models and engaging CPDs.
Specifying
Compact-Grade
Laminate duct panels
For
Commercial
Washrooms
