COMMERCIAL

Curve Privacy Cubicle System

Curve Privacy combines the signature rounded pilasters of our popular Curve range with full floor-to-ceiling height for complete user privacy. Recommended for commercial environments where comfort, discretion, and durability are equally important, Curve Privacy delivers a premium solution for office headquarters and upscale co-working spaces.
Built from durable Compact Grade Laminate (CGL), Curve Privacy is resistant to water, impact, and high levels of footfall, making it a practical choice for spaces that need to look good on the outside and be robust on the inside. Plus, the rounded pilasters soften the visual presence of each cubicle, creating a subtle but unique effect. Our Curve Privacy range can be specified with the pilasters running all the way to the floor or with a raised leg.
Curve Cubicle System - Material Source Glasgow
Curve Cubicle System - Material Source Glasgow
Curve Cubicle System - Material Source Glasgow
RESOURCES

Specifier Tools

Get started with technical specifications, CAD blocks, and Revit models – everything you need to integrate Curve Privacy into your next commercial scheme.
Curve Privacy AutoCad File
Curve Privacy AutoCad File
Download the 2D .dwg file to support your specification

DOWNLOAD

Curve Privacy Revit File
Curve Privacy Revit File
Use the Revit model to support your specification

DOWNLOAD

Curve Privacy Product Sheet
Curve Privacy Product Sheet
Access the latest specs for the Curve Privacy range in our handy guide

DOWNLOAD

Specify with confidence by speaking to our team for tailored guidance.

TALK TO US
PRODUCT SPECIFICATION

Product Specification

From cubicle dimensions and material details, to ironmongery and colour options, get the inside details on our Curve Privacy range.
No. Item Dimensions
001 Panel Height Up to 2800mm
002 Panel Depth Up to 1800mm
003 Floor Clearance 10mm under doors
004 Door Opening 650mm
005 Door Width 710MM

Our Curve system is made bespoke, and all sizes are provided as a guide. For more specification support for cubicle dimensions, speak to a member of our team.

001
002
003
004
005

Compact Grade Laminate Panel Material

Made from 12mm Compact Grade Laminate (CGL), our Curve Privacy range offers outstanding resistance to water, impact, and general wear, making it an ideal choice for the day-to-day demands of busy commercial buildings and developments.
Made from 12mm Compact Grade Laminate (CGL), our Curve Privacy range offers outstanding resistance to water, impact, and general wear, making it an ideal choice for the day-to-day demands of busy commercial buildings and developments.
No. Material
001 Melamine Overlay
002 Décor Paper
003 Kraft Paper (Approx 50 Layers)
001
002
003
Our Curve Privacy system can be supplied with ironmongery in a number of powder-coated options as standard to match or contrast your chosen laminate.
Powder Coated

Nickel

Powder Coated

Bronze Effect

Powder Coated

Copper Effect

Powder Coated

Matte Black

Powder Coated

Matte Light Grey

Powder Coated

Matte White

Bespoke Ironmongery Finishes

For large-scale washroom projects featuring 20 cubicles or more, we offer the option to powder coat hardware to match any RAL colour. This allows for greater design flexibility and to create a cohesive, custom finish that aligns perfectly with the wider interior scheme or brand palette.

Speak to us about bespoke finishes

Fundermax

Our Curve range can be specified using hard-wearing Fundermax HPL, available in a variety of striking and subtle colours.
The water-resistant qualities of CGL mean our Curve Privacy range is more than suitable as shower cubicles and for usage in wet areas and changing rooms.

THE
SPLASH
LAB

Complete your washroom project with stunning accessories form The Splash Lab.
DESIGN WITH IMPACT
Features

Panels made from Compact Grade Laminate for durability

Curve Cubicle System - Material Source Glasgow

Powder coated ironmongery

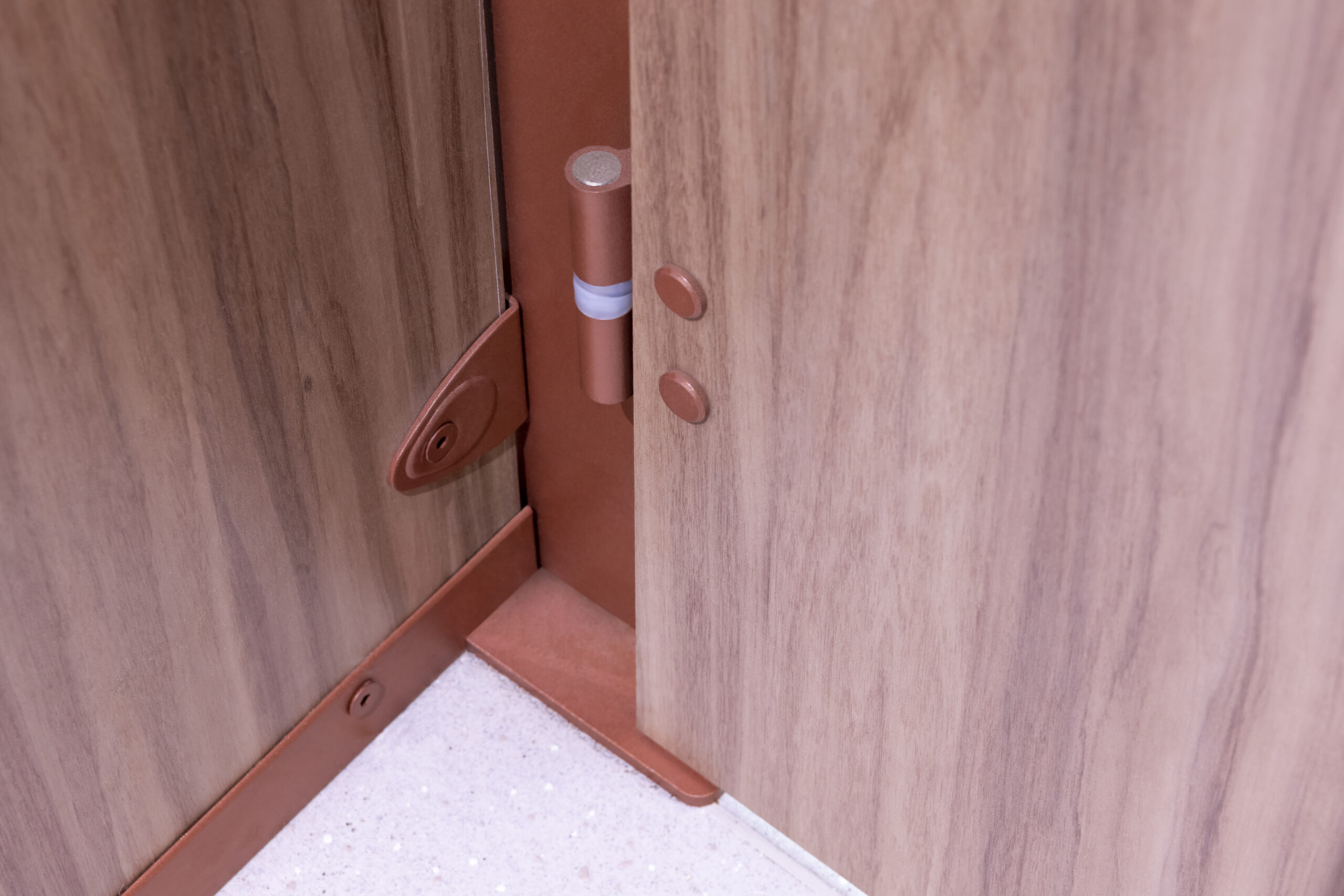

Bolt through brackets and hinges

Curve Cubicle System - Material Source Glasgow

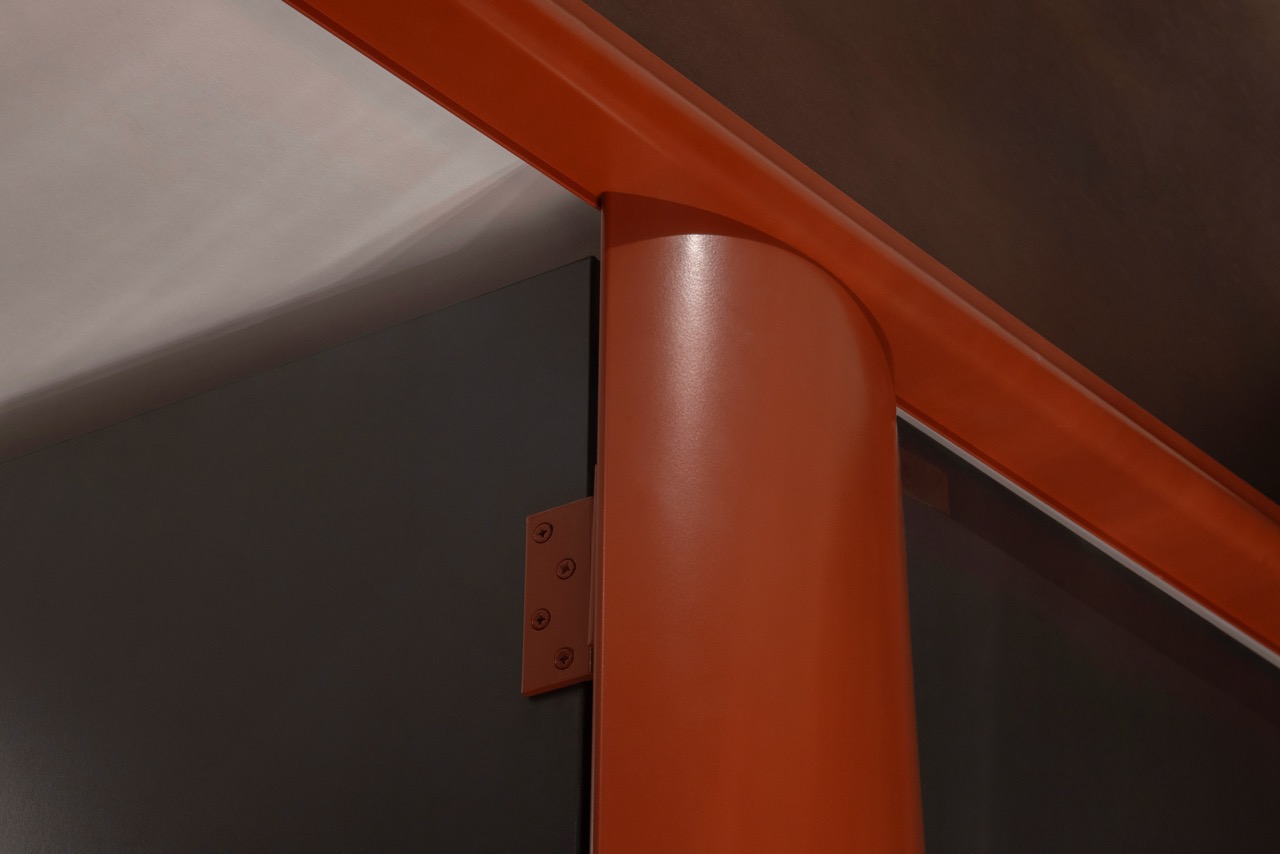

Radiused aluminum pilasters

Striking design for impactful washrooms

Material Source Glasgow washroom. Installed by Concept Washroom

Two fixing options available

Panels made from Compact Grade Laminate for durability

Curve Cubicle System - Material Source Glasgow

Powder coated ironmongery

Bolt through brackets and hinges

Curve Cubicle System - Material Source Glasgow

Radiused aluminum pilasters

Striking design for impactful washrooms

Material Source Glasgow washroom. Installed by Concept Washroom

Two fixing options available

Specifier Hub

Enhance your learning with our latest specifications, BIM models and engaging CPDs.
BOOK YOUR SPOT
Curve Cubicle System - Material Source Glasgow

Specifying
Curve
For
Commercial
Washrooms

If you’re planning an office washroom refurbishment, our Curve Privacy toilet cubicles offer the ideal solution. Designed for full floor-to-ceiling coverage, this system ensures maximum user comfort and discretion. The curved pilasters introduce a modern, refined aesthetic that suits contemporary office environments.

Manufactured from impact-resistant Solid Grade Laminate, the doors, toilet partitions, and side panels in the Curve Privacy range are built to handle the demands of high-traffic office spaces.

Washrooms are often one of the final considerations in large-scale office developments. At Concept, we simplify the specification process by providing access to CAD files, Revit drawings, and material samples. Our team is also on hand to advise on office toilet requirements in office buildings, including guidance on compliance with Approved Document T.
In addition to Curve Privacy, we offer a wide selection of commercial washroom products, such as Solid Surface Vanities, Wash Troughs, and Laminate Duct Panels, allowing you to complete your project to the highest professional standards.
